Measure 32
Medium Pattern System
(Source: Ships-2 Supplement 1 March 1943)

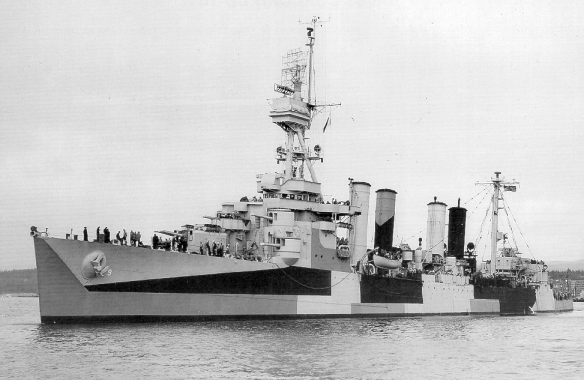

USS Richmond CL-9 Wearing MS32/3d Camouflage

Vertical Surfaces:

Paint all exposed vertical surfaces a pattern of:

Light Gray 5-L.
Ocean Gray 5-O.
Black

Horizontal Surfaces:

Paint all decks and horizontal surfaces a pattern of:

Deck Blue, 20-B.
Ocean Gray 5-O.

Canvas Covers.

Canvas covers visible from the outside vessel are to be dyed a color corresponding to Deck Blue.

Notes:

The camouflage painting need not be exact or carried into corners.  Small gear, wires, rigging, and areas permanently in shadow, as under boats, etc., need not be painted with the camouflage colors.  There is no objection to exact or careful painting which may be desired for the sake of good appearance at close range.

All bright or shiny objects, no matter how insignificant, shall be painted, covered, or removed.

Glass windows shall be covered or removed, especially during the day in sunny weather, and at night when anticipating searchlight discovery.  Insofar as conditions permit, similar precautions shall be taken on airport lenses.
